Technical Parameter
-Electrical Specification and Connections
Power Supply:
300W Electronic Auto-Ranging
Input Voltage Range:
100-240 V, 50/60 Hz
Power in Connector:
Neutrik PowerCON
Signal input/output:
3-pin XLR Head Socket
-Source
Light Source Type:
300W cool&warm white 2in1 COB
Color temperature:
2880K - 3000K
LED Life Expectancy:
20000 Hours
Dimmer:
0~100% Linear Dimming
LED Feature：
Auto Mode ,Sound Mode,Manual Programming Scenarios
-Optical System
Beam Angle:
16.5 ~ 62°
Strobe:
0--25HZ
Beam Lux:
1730 Lux / 10m
Dimmer:
0~100% Linear Dimming
-Control and Programming
Protocols:
DMX512
Running Mode:
DMX512 Mode, Manual Mode
DMX Channel Mode：
2/3 CH
-Mechanical Specification
Housing :
Die cast aluminum casing
Heat Dissipation Method:
Overheat Protection, Efficient Heat Dissipation System
Product Zize：
7.87x7.87x14.96 inch / 20x20x38 cm
Product Weight:
6.5 kg
Package Size:
20.28x12.01x10.83 inch / 51.5x30.5x27.5 cm
Package Weight:
8.0 kg
Ingress Protection Rating:
IP65

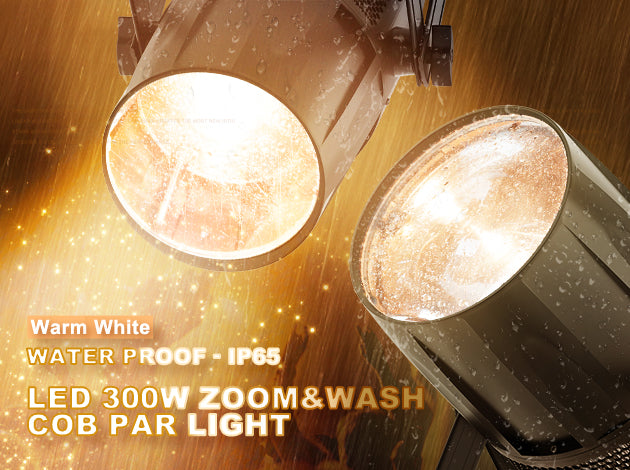

Waterproof LED Zoom&Wash Par
300W Warm White Light（IP65）
The light source consists of 300W COB LEDs,
Linear adjustable c creates the most realistic stage scene environment,
creates a strong visual impact for the performance.
Product Features
Dual modes are available, allowing the lights to dance to the music,
The lighting engineer can flexibly switch colors, angles, and lighting effects.

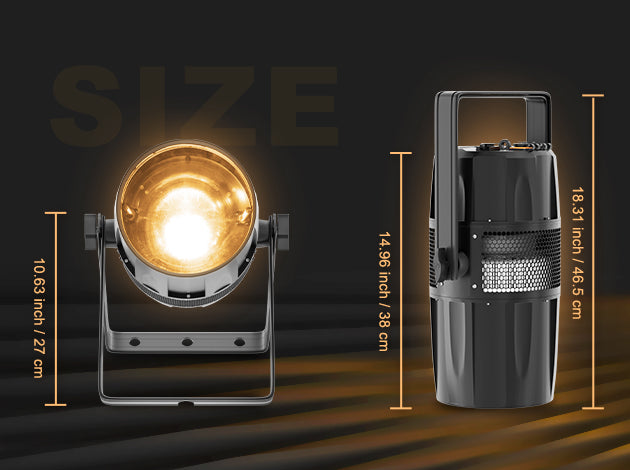

Dimension
Product size：Size: 7.87x7.87x14.96 inch / 20x20x38 cm
Product weight: 6.5 kg

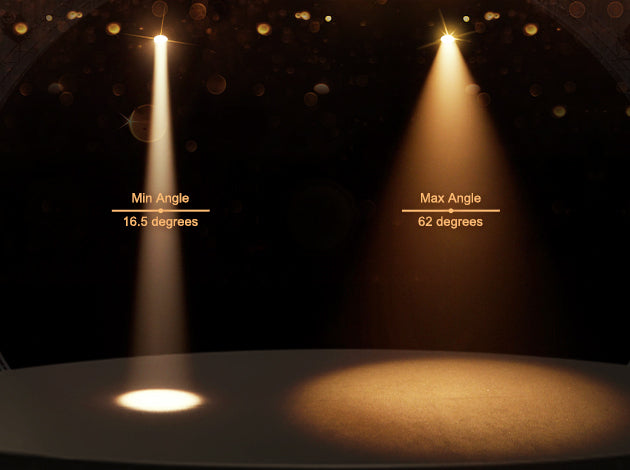

Beam Angel
16.5 ~ 62° Beam Angel Covering a wider area can illuminate a larger space. The lighting is more natural and comfortable. It is more natural and will not have overly stiff effects.

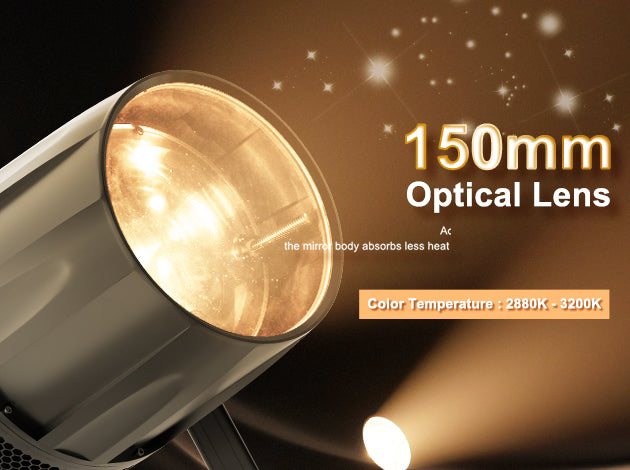

Optical Lens Display
Adopting Fresnel threaded lenses,
the mirror body absorbs less heat energy, reduces scattering loss, and has high efficiency
Integrating Powerful Beam And Wash Functions
A linear focusing system with a beam angle of 25 ~63 °, multiple speed strobe effects,and a smooth dimming function of 0-100%,
Can produce a variety of dynamic psychedelic lighting effects,
fully adapting to different stage application needs.
Beam Effect
Adjust lighting through the lens to enhance the atmosphere of the scene.
Not only does it add color and vitality to the stage, but it also brings us a brand new visual world.
Zoom Effect
Adjust lighting through the lens to enhance the atmosphere of the scene.
LED Light Source
Using 5mm Thick pure copper load panel Has properties such as high temperature resistance, oxidation resistance, and corrosion resistance ，So as to adapt to different lighting environments and customer needs.
Waterproof Effect Test
To ensure that our waterproof products can provide long-lasting and reliable protection under various adverse weather conditions, we have conducted a series of rigorous tests，Imitate the effect of the scene in the light rain
Applicable Scene
These lights are perfect for creating stunning visual effects in bars and clubs, enhancing the vibrant atmosphere of any venue.
Split Heat Dissipation
Independent isolation compartment heat dissipation method, dual insulation and sealing protection measures, high-performance waterproof fan with intelligent temperature control adjustment
Introduction To Panel Functions
Waterproof soft glue menu button, simple interactive menu。

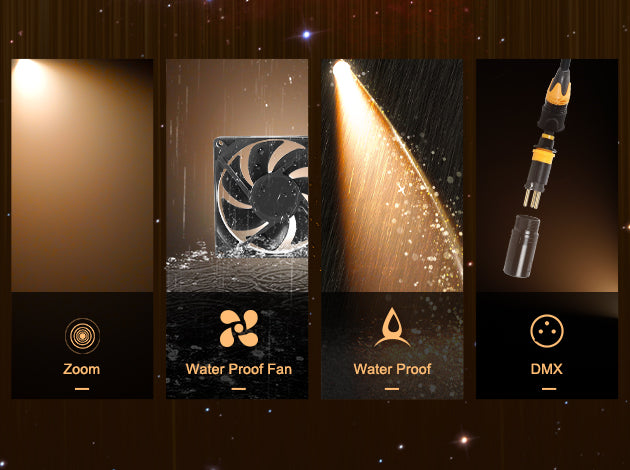

Waterproof Interface
All Weather Protective Beam Light All weather protective beam light,waterproof power connector input/output , can be used outdoors all year round. The carefully designed heat dissipation performance ensures the waterproofing and heat dissipation of high-power light bulbs, ensuring the lifespan and smooth operation of the lamps.
Suspension Installation Structure
Reserve installation position for safety rope
Carefully Select Excellent Accessories
Adopting a wide voltage power supply and internationally recognized large capacitors Bold copper wire for higher brightness and better current stability

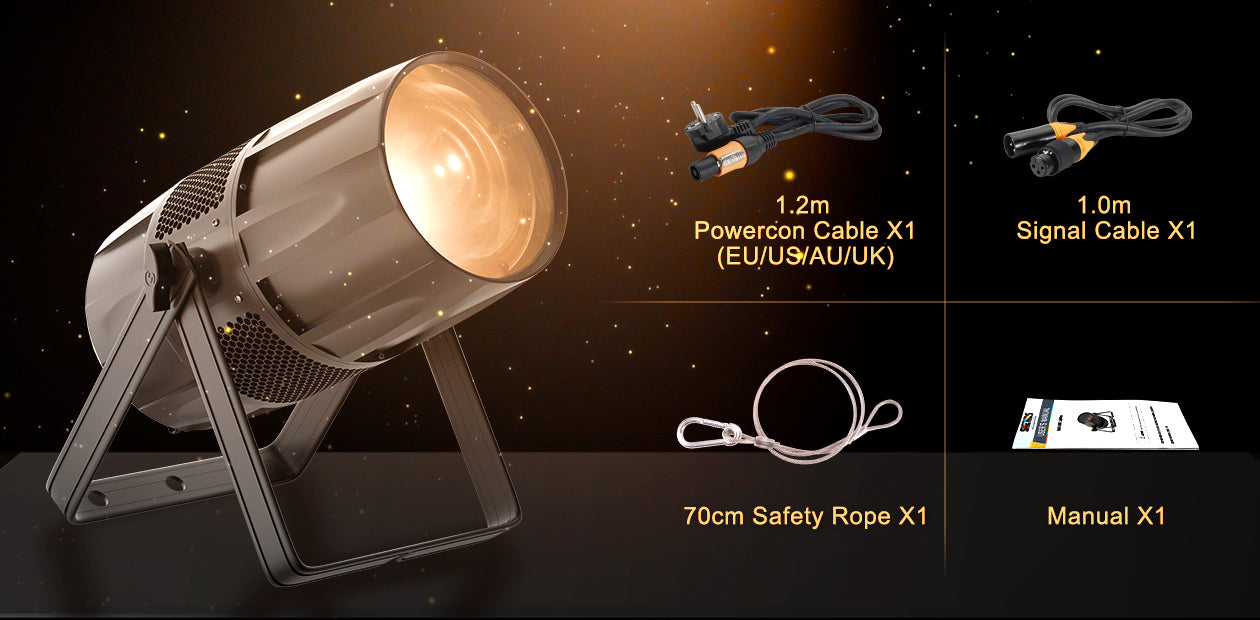

Packing List
Each process undergoes strict verificationEvery part is carefully selected

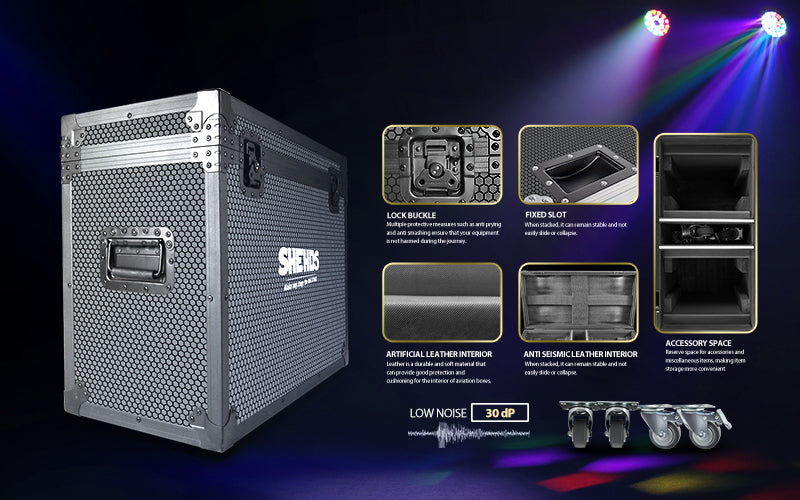

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
