Technical Parameter
-Electrical Specification and Connections
Power Supply:
160W Electronic Auto-Ranging
Input Voltage Range:
100-240 V, 50/60 Hz
Power in Connector:
Neutrik PowerCON
Signal input/output:
3-pin XLR Head Socket
-Source
Light Source Type:
LED 100W White
LED Life Expectancy:
20000 Hours
Dimmer:
0~100% Linear Dimming
LED Feature：
Auto Mode ,Sound Mode,Manual Programming Scenarios
-Optical System
Beam Angle:
16 Degrees
Dynamic Gobo Wheel:
7 pcs
Static Gobo Wheel:
6 pcs
Color Wheel:
7 Colors + White (Half-Color Effect)
Prism:
Six-sided circular rotating prism
Strobe:
0--25HZ
Dimmer:
0~100% Linear Dimming
-Control and Programming
Protocols:
DMX512
Running Mode:
DMX512 Mode, Manual Mode
DMX Channel Mode：
16 CH
-Mechanical Specification
Pan/Tilt:
540°/180° & Fine
Housing :
High Strength Aluminum Alloy Body
Heat Dissipation Method:
Overheat Protection, Efficient Heat Dissipation System
Product Zize：
25x20x35 cm
Product Weight:
6.1 kg
Package Size:
36x30x30 cm
Package Weight:
7.15 kg
Ingress Protection Rating:
IP20
LED Spot 100W Lighting
Six-Sided Circular Rotating Prism
Add more visual impact and artistic sense to the performance, making the stage effect more stunning.
Create a unique atmosphere and enhance the entertainment experience of consumers.
Product Features
Suitable for various stage performances and film and television shooting,
with strong adaptability and the ability to meet the needs of different scenes.

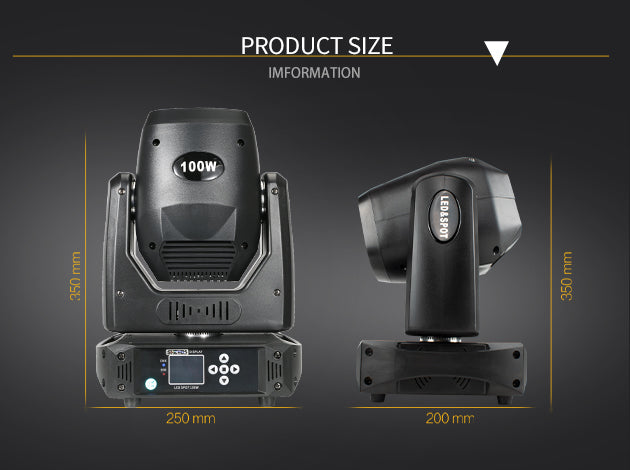

Dimension
Product Zize： 25x20x35 cm
Product Weight: 6.1 kg
Beam Angle
More concentrated lighting ensures the clarity and sharpness of the pattern on stage, maintaining excellent performance both at long and close distances.
24pcs LED RGB Ring
Supports RGB full-color color adjustment, which can change colors according to music, rhythm, or custom modes, adding infinite charm to performances.
Color Effect
Quick switching and smooth transitions of multiple colors. From warm orange yellow to calm blue-green, from bright primary colors to soft transition colors, each color can accurately match the rhythm and emotions of the performance, creating a perfect stage atmosphere.

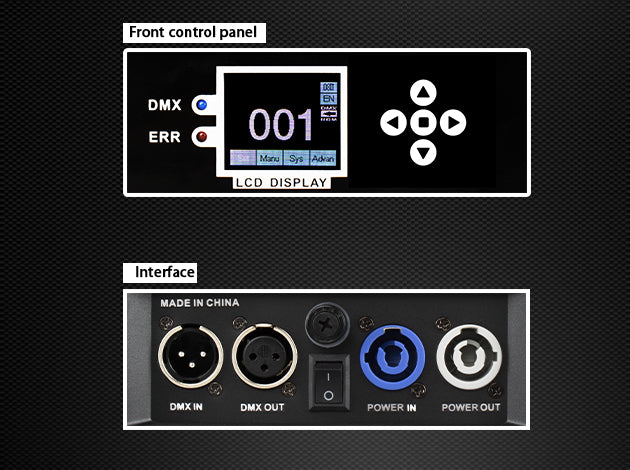

Control Interface and Power Interface
DMX512 and power input/output interface, supporting master-slave series mode
LED Source
LED light sources using high-quality materials and manufacturing processes have stable color rendering, long lifespan, and low power consumption, providing long-lasting and stable lighting for stage performances.
Stage Effect
In addition to color changes, the stage pattern light color palette can also create rich and diverse visual effects by overlaying different patterns.
Prism Effect
Create rich and colorful patterns and beam effects. Patterns and colors interweave and overlap on stage, creating a three-dimensional and multi-level visual effect.
Prism Rotating
Supports forward and backward rotation and linear adjustment of prism rotation speed.

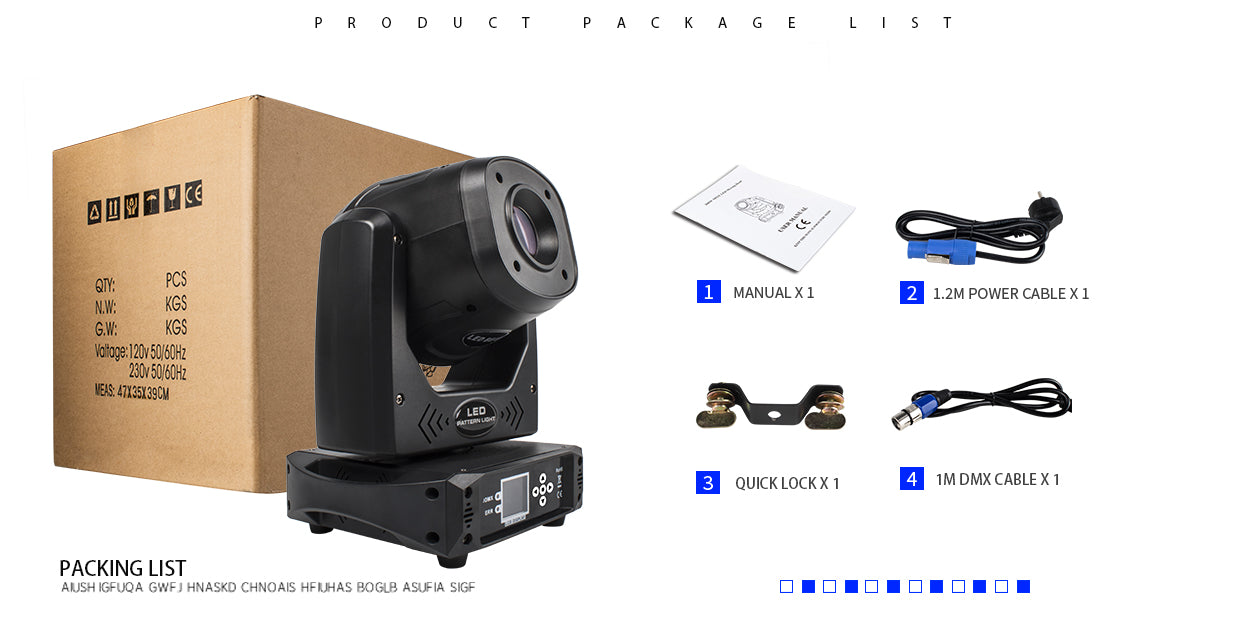

Packing List
Each process undergoes strict verificationEvery part is carefully selected
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
