Technical Parameter
-Electrical Specification and Connections
Power supply:
450W-380V+12V+36V Electronic auto-ranging
Input voltage range:
100-240 V, 50/60 Hz
Power in connector:
Neutrik powerCON
-Source
Light source type:
380W Bulb
Colour temperature output:
7500±500 K
10m/20m Beam Illuminance:
475000 lux @ 10m / 125500 lux @20m
10m/20m frost Illuminance:
5300 lux@10m / 1300 lux @20m
Life expectancy:
min. 1500 hours
-Optical system
Beam angle:
Beam 1.8°- Frost 9.5°
Dimmer:
Mechanical shutter
Lens diameter:
160mm
-Dynamic Effects and Features
Colour wheel :
14 fixed dichroic colours + white
Static gobo wheel:
17 static gobos + open
Prism 1:
8-facet prism rotating in both directions at variable speed
Prism 2:
24-facet prism rotating in both directions at variable speed
Frosts:
Fast change frosts for instant softening of the projected gobo or framing shutters
Raimbow wheel:
6 colors
-Control and programming
Protocols:
DMX512,RDM
DMX Channel Mode：
19 CH;
Feature：
Auto mode ,Sound mode,Manual programming scenarios
-Mechanical specification
Housing :
High temperature resistant and flame retardant plastic housing
Product size：
39 x 30 x 60 cm / 15.35x 11.81 x 23.62 inch
Product weight:
21.96 kg
Package size:
Package size: 77 x 52 x 75 cm / 30.3 x 20.4 x 29.5 inch
Package weight:
22 kg
Operating temperature:
-20~60℃
Ingress protection rating:
IP65
WATERPROOF 380W BEAM LIGHT
Moving Head Lighting
Waterproof IP 65 380W beam shake head lamp, equipped with a 380W light engine, with high output and high display switching mode, pure color and extremely high color reproduction. Rich color and pattern plates, excellent dynamic wheel and prism effects, combined with various strobe speeds,
create a colorful and ever-changing visual effect.
Product Features
Flexibly shaping uniform and colorful pattern effects, effortlessly showcasing exciting and colorful illusion lighting effects.Uniform color mixing and excellent color reproduction can create a dazzling stage light and shadow visual experience,Improve the level of stage performance in all aspects, providing high-quality choices for various professional performance venues such as concerts, bars, evening parties, roadshows, etc.
Dimension
Product size：39 x 30 x 60 cm / 15.35x 11.81 x 23.62 inch
Product weight: 21.96 kg
Beam Angel
Beam 1.8°- Frost 9.5° Beam Angel Covering a wider area can illuminate a larger space. The lighting is more natural and comfortable. It is more natural and will not have overly stiff effects.
Optical Lens Display
Clockwise and counterclockwise 360 °rotation
Integrating Powerful Beam
Bring stunning visual effects to your performance and push it to the climax. This shaking head beam lamp adopts advanced technology to bring unique light and shadow charm to the stage, making your performance more eye-catching.
Prism Effect
Adjust lighting to enhance the atmosphere of the scene through the overlapping effect of biprism.
It not only adds color and vitality to the stage, but also brings us a brand new visual world.
Frost Effect
The atomized dyeing effect brought an unprecedented visual feast to the performance, making the stage more dreamy, mysterious, and captivating.
Color Effect
14 fixed dichroic colours + white Rich colors, from elegant pink to deep blue, from passionate red to fresh green, interweave and blend in the smoke, forming charming scenes.
Out Door IP65
Adopting rigorous waterproof technology to ensure stable operation even in harsh outdoor environments. Whether it's drizzling rain or pouring rain, our stage lights can easily handle it, ensuring that your performance is not affected by the weather and always shines brightly.
155mm Optical Coated Large Lens
More powerful and spectacular beam of light,
The pattern is clearer and more natural,New Process Technology for Colorful Coating
Outdoors Scene
The shell is made of waterproof and corrosion-resistant materials, which not only has excellent waterproof performance but also resists the erosion of harsh weather, ensuring the service life of the lamp.
Technology
The internal circuit has also undergone special treatment to effectively prevent moisture intrusion and ensure the stable operation of the lamp.
Carefully Select Excellent Accessories
Adopting a wide voltage power supply and internationally recognized large capacitors Bold copper wire for higher brightness and better current stability
Split Heat Dissipation
Efficient heat dissipation function can quickly dissipate the heat generated inside the lamp, effectively preventing the lamp from overheating.
Split Heat Dissipation
Efficient heat dissipation function can quickly dissipate the heat generated inside the lamp, effectively preventing the lamp from overheating.

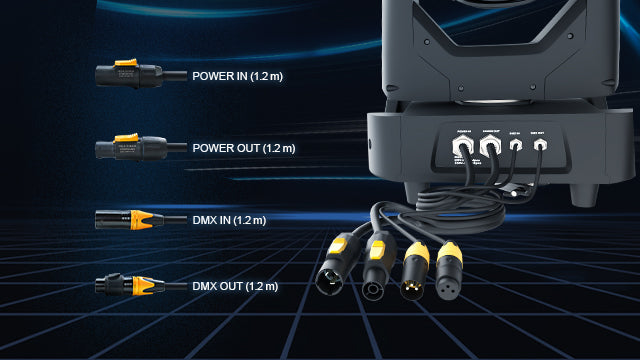

Power and signal cables-IP67
The waterproof outer layer material effectively blocks the invasion of water, while the internal circuit is specially treated to have excellent waterproof performance.
Waterproof Interface
1.8 inch TFT color LCD display screen, 180 degree rotatable
Waterproof Interface
The high-definition display UI interface design is simple and clear, with clear and easy to read icons and text. The interface integrates multiple functional options
Suspension Installation Structure
By using RDM functionality, remote management and control of devices can be achieved, making stage lighting management more convenient and efficient.
Split folding light hook
The split folding lamp hook is made of high-strength materials to ensure stability and reliability during use.
Packing List
Each process undergoes strict verificationEvery part is carefully selected
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
