Technical Parameter
-Electrical Specification and Connections
Power Supply
800W Electronic Auto-Ranging
Input Voltage Range
100-240 V, 50/60 Hz
Power in Connector
Neutrik PowerCON
Signal input/outputr
3-pin XLR Head Socket
-Source
Light Source Type
LED 15W*37PCS RGBW color mixing
LED Life Expectancy
20000 Hours
Dimmer
0~100% Linear Dimming
LED Feature
Auto Mode ,Sound Mode,Manual Programming Scenarios
-Optical System
Beam Angle
4~60 Degrees
Strobe
0--30HZ
Dimmer
0~100% Linear Dimming
-Mechanical Specification
Pan/Tilt
540°/270° & Fine
Housing
High Strength Aluminum Alloy Body
Heat Dissipation Method
Overheat Protection, Efficient Heat Dissipation System
Product Size
50.5x37x22 cm
Product Weight
14.25 kg
Package Size
55x47x39.5 cm
Package Weight
16 kg
Ingress Protection Rating
IP20

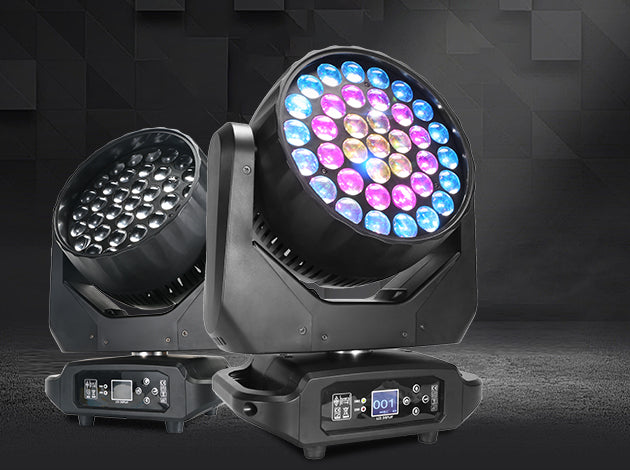

37x15W RGBW Zoom LED Wash Light
RGBW 4in1 Color Mixing
Dye the stage background to create a dreamy visual effect. At the same time, it can also create different atmospheres and emotions for performances through color changes and combinations.
Product Features
Suitable for various stage performances and film and television shooting,
with strong adaptability and the ability to meet the needs of different scenes.

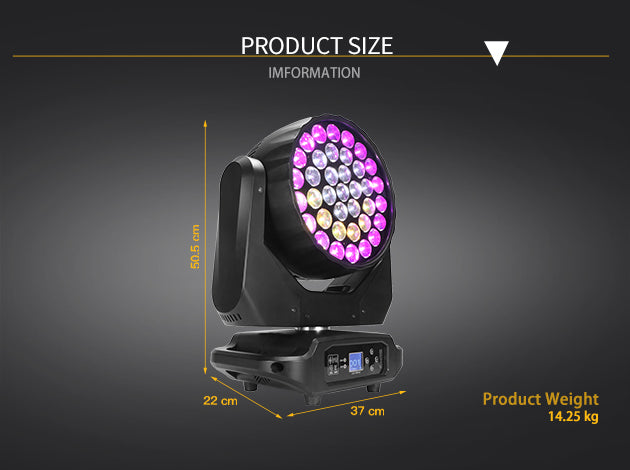

Dimension
Product size：Size: 50.5x37x22 cm
Product weight: 14.25 kg

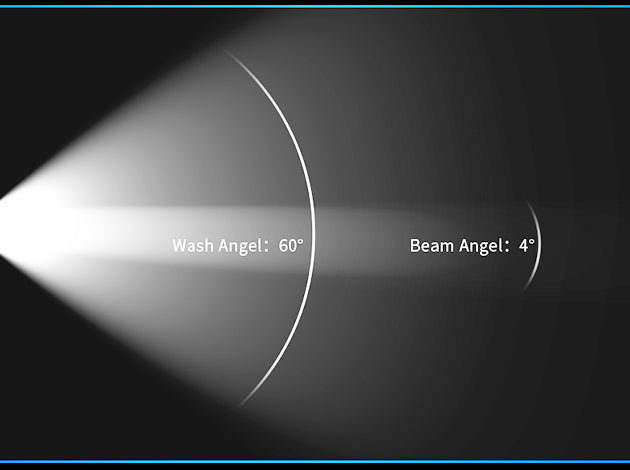

Beam Angel
4~60° controllable adjustment of Beam Angel Covering a wider area can illuminate a larger space. The lighting is more natural and comfortable. It is more natural and will not have overly stiff effects.
RGBW 4in1 Mixing Color
By changing and combining colors, different atmospheres and emotions are created for the performance.

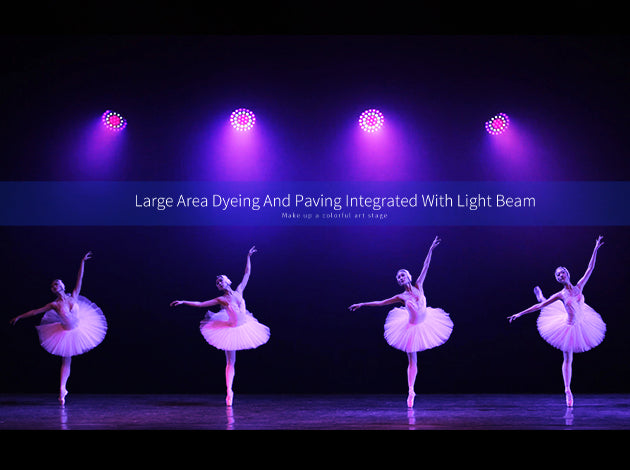

Large Area Lighting
According to the stage layout and performance requirements, the light beam can be accurately projected onto specific positions or actors to create unique visual effects.

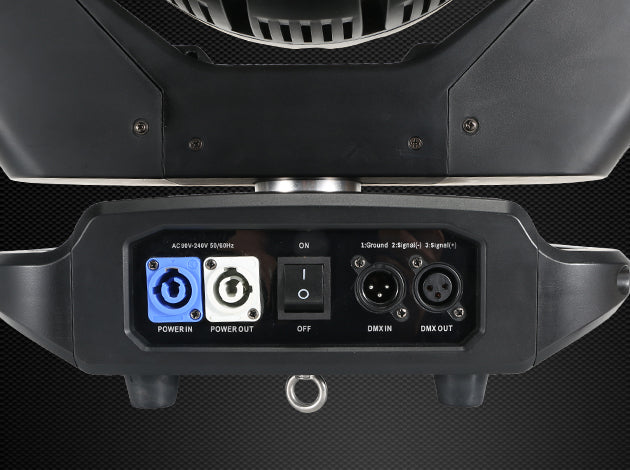

Control Interface and Power Interface
DMX512 and power input/output interface, supporting master-slave series mode
Efficient heat dissipation
Adopting three efficient and stable cooling system fans. The cooling fan has the characteristics of fast heat dissipation, low noise, and long lifespan, which can provide long-lasting and stable cooling support for your fixture.

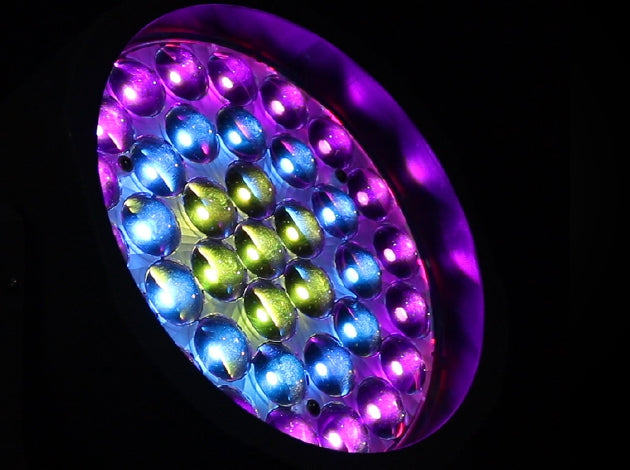

Independent color changing panel
7+12+18 LED three-layer design, with a total of 37 LED beads, including RGBW with complete four colors, each layer can be independently controlled. Adjust the brightness and color of each layer of LED at will, making your lighting performance more colorful.
Flexible Zoom
Adapt to various scenarios and needs. Whether it's a large scene that needs to illuminate the entire stage or a small scene that needs to focus light on specific actors or props, this stage light can easily handle it.
Compact Body
The compact stage lights are no less functional. It has the characteristics of high brightness, high color rendering, and rich colors, which can bring excellent lighting effects to performances.

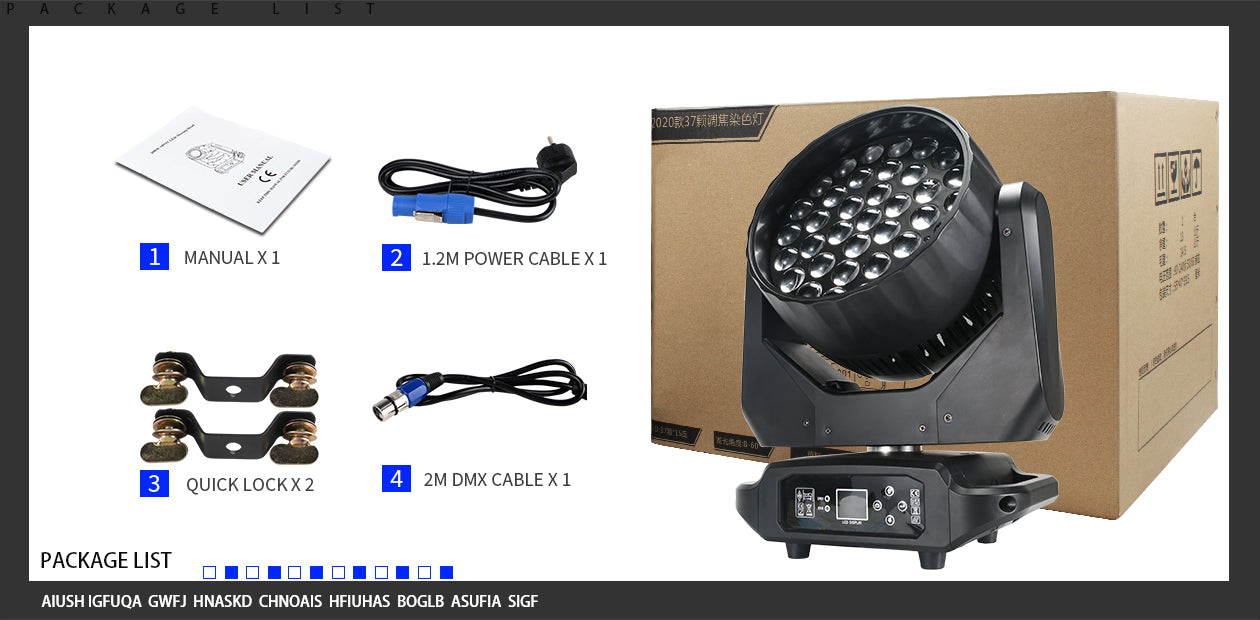

Packing List
Each process undergoes strict verificationEvery part is carefully selected
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
