Technical Parameter
-Electrical Specification and Connections
Power Supply:
450W Electronic Auto-Ranging
Input Voltage Range:
100-240 V, 50/60 Hz
Power in Connector:
Neutrik PowerCON
Signal input/output:
3-pin XLR Head Socket
-Source
Light Source Type:
230W Bulb
LED Life Expectancy:
2000 Hours
Dimmer:
0-100% 16Bit mechanic dimmer
LED Feature：
Auto Mode ,Sound Mode,Manual Programming Scenarios
-Optical System
Beam Angle:
2~5 Degrees
Gobo Wheel:
17 pcs
Color Wheel:
14 Colors + White (Half-Color Effect)
Other Effect:
6 in1 Color wheel
Strobe:
0--25HZ
Focus:
Linear focus
-Control and Programming
Protocols:
DMX512
Running Mode:
DMX512 Mode, Manual Mode
DMX Channel Mode：
16/20 CH
-Mechanical Specification
Pan/Tilt:
540°/270° & Fine
Housing :
High temperature resistant and flame-retardant plastic shell
Heat Dissipation Method:
Overheat Protection, Efficient Heat Dissipation System
Product Zize：
52.3 x 33.7 x 51.1 cm
Product Weight:
19.5 kg
Package Size:
52.3 x 33.7 x 51.1 cm
Package Weight:
23 cm
Ingress Protection Rating:
IP20
230W 7R Beam Lighting
24-Sided Circular Rotating Prism
Add more visual impact and artistic sense to the performance, making the stage effect more stunning.
Create a unique atmosphere and enhance the entertainment experience of consumers.
Product Features
Suitable for various stage performances and film and television shooting,
with strong adaptability and the ability to meet the needs of different scenes.
Dimension
Product Zize： 52.3 x 33.7 x 51.1 cm
Product Weight: 19.5 kg
Beam Angel
More concentrated lighting ensures the clarity and sharpness of the pattern on stage, maintaining excellent performance both at long and close distances.
Powerful Beam Effect
Its unique beam effect has become an indispensable lighting device on the stage. It uses high brightness LED light sources and advanced optical design to create a strong and focused beam effect, adding shock and mystery to the performance.
Peism Effect
Using a 24-face prism, the light beam undergoes unique refraction and reflection during the projection process, resulting in a colorful and layered light and shadow effect.
Power Beam
The 5-meter illumination reaches 327900lux, with a sharp sense and excellent light output, creating a strong visual impact for the performance.
Control Interface and Power Interface
DMX512 and power input/output interface, supporting master-slave series mode
Gobo and Color
Pattern wheel: 1 fixed pattern disc with 17 different patterns and white circles Color wheel: 1 color tray with a total of 14 colors plus white

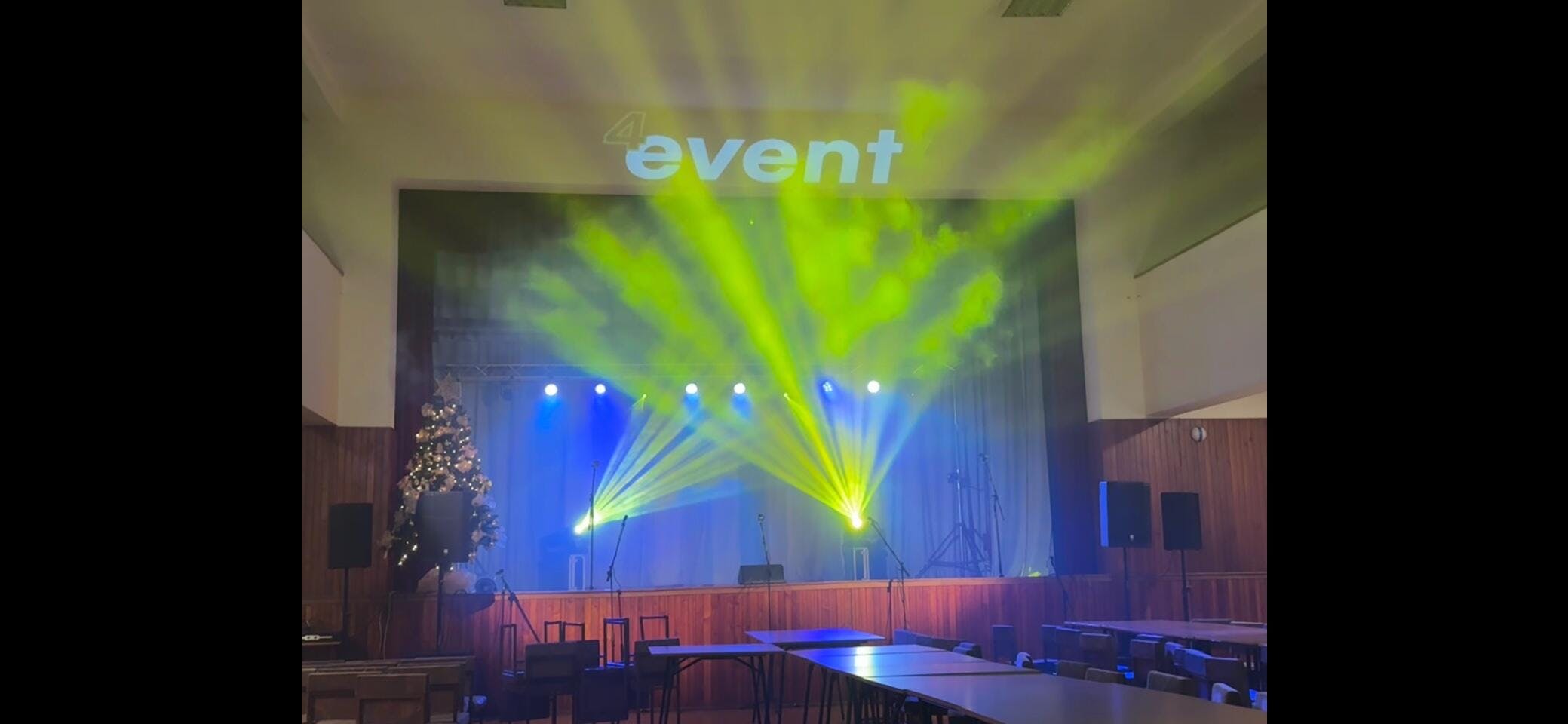

Stage Effect
In addition to color changes, the stage pattern light color palette can also create rich and diverse visual effects by overlaying different patterns.
Prism Effect
Create rich and colorful patterns and beam effects. Patterns and colors interweave and overlap on stage, creating a three-dimensional and multi-level visual effect.
Prism Rotating
Supports forward and backward rotation and linear adjustment of prism rotation speed.
Packing List
Each process undergoes strict verificationEvery part is carefully selected
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
